Description |

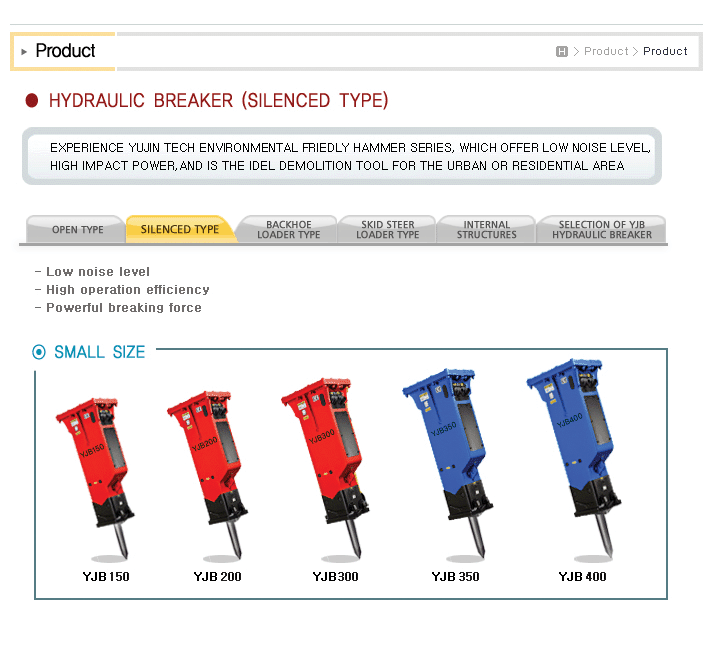

YJB 150 |
YJB 200 |
YJB 300 |
YJB 350 |
YJB 400 |
Operating Weight
(includingtool+mountcap)
Overall
Height |
Bracket,Box
(low noise) |
Kg |
106 |
175 |
275 |
395 |
490 |
with mount cap |
mm |
1,350 |
1,420 |
1,586 |
1,729 |
1,946 |
Without mount cap |
mm |
1,110 |
1,220 |
1,386 |
1,479 |
1,726 |
Operating Pressure |
bar |
80~110 |
90~120 |
90~130 |
100~130 |
130~150 |
Required Oil Flow |
lpm |
20~30 |
20~50 |
30~50 |
40~80 |
45~90 |
Impact Rate |
bpm |
600~1,200 |
550~1,200 |
450~900 |
450~900 |
450~800 |
Impact Power |
joule |
400 |
480 |
849 |
1,210 |
1,764 |
Tool Diameter |
mm |
46 |
53 |
68 |
75 |
85 |
Hose Diameter |
inch |
1/2"(13) |
1/2"(13) |
1/2"(13) |
1/2"(13) |
3/4"(19) |
Suitable Machine |
ton |
0.8~3.0 |
1.0~3.5 |
2.0~7.0 |
3.5~9.0 |
6.0~11.0 |
|
|
Description |

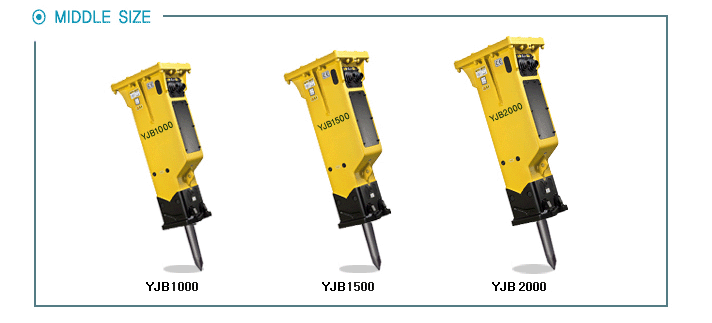

YJB 1000 |
YJB 1500 |
YJB 2000 |
Operating Weight
(includingtool+mountcap)
Overall
Height |
Bracket,Box
(low noise) |
Kg |
785 |
1,350 |
1,860 |
with mount cap |
mm |
2,338 |
2,440 |
2,640 |
Without mount cap |
mm |
2,053 |
2,090 |
2,320 |
Operating Rressure |
bar |
150~170 |
150~180 |
160~180 |
Required Oil Flow |
lpm |
80~100 |
90~120 |
130~150 |
Impact Rate |
bpm |
450~800 |
400~900 |
400~800 |
Impact Power |
joule |
2,443 |
4,234 |
5,290 |
Tool Diameter |
mm |
100 |
120 |
135 |
Hose Diameter |
inch |
3/4"(19) |
1"(25) |
1"(25) |
Suitable Machine |
ton |
9.0~12.0 |
13.0~18.0 |
18.0~26.0 |
|
|
Description |

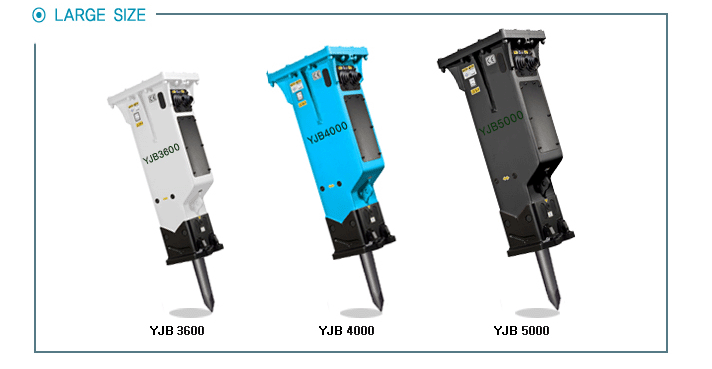

YJB 3600 |
YJB 4000 |
YJB 5000 |
Operating Weight
(includingtool+mountcap)
Overall
Height |
Bracket,Box
(low noise) |
Kg |
2,400 |
3,190 |
4,000 |
with mount cap |
mm |
2,904 |
3,258 |
3,726 |
Without mount cap |
mm |
2,574 |
2,859 |
3,291 |
Operating Rressure |
bar |
160~180 |
160~180 |
160~180 |
Required Oil Flow |
lpm |
190~250 |
190~250 |
250~310 |
Impact Rate |
bpm |
350~700 |
300~600 |
250~450 |
Impact Power |
joule |
7,200 |
9,970 |
13,125 |
Tool Diameter |
mm |
150 |
160 |
175 |
Hose Diameter |
inch |
1"(25) |
11/4"(32) |
11/4"(32) |
Suitable Machine |
ton |
28.0~35.0 |
33.0~50.0 |
45.0~55.0 |
|
|
|
|
|
|
